Flagship GPU Slammed by Repair Specialist
A prominent PC repair specialist has strongly criticized the design of the NVIDIA GeForce RTX 5090 Founders Edition (FE). The specialist, known as Northridge Fix, called the flagship card “one of the worst designs ever.” This harsh assessment came after a failure to fix a damaged unit. This issue exposes a serious and possibly fatal flaw in the card’s complex construction.
The Core Design Flaw Exposed

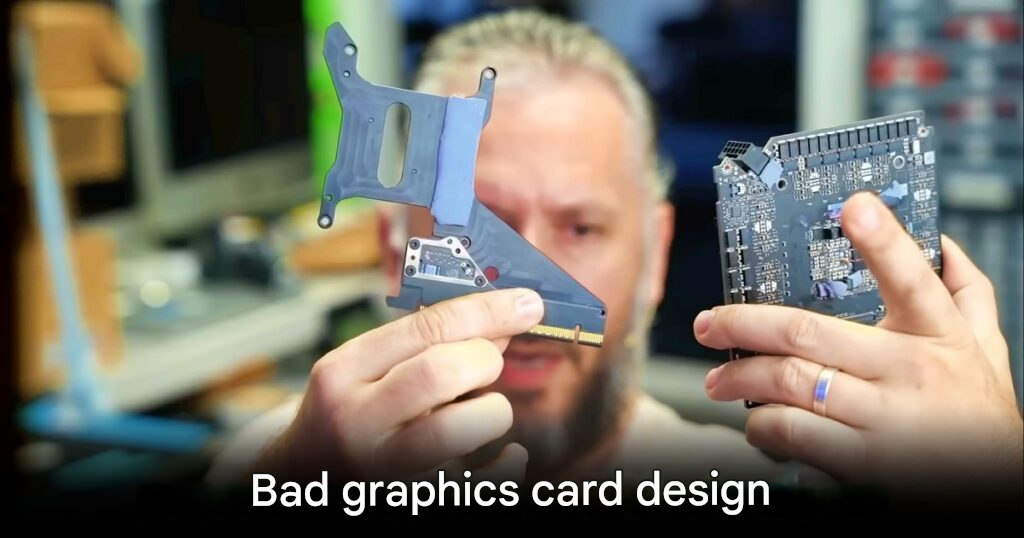

The core issue lies in the card’s highly unusual internal layout. NVIDIA uses a relatively small Printed Circuit Board (PCB) for the main components. This PCB sits in the center of the massive heatsink assembly. This short board design forces the PCIe interface to take an unusual route. The PCIe connector, which plugs into the motherboard, is not part of the main PCB. It is instead a separate component.
This critical piece is connected to the main board via a small, fragile internal connector. The repair expert notes that this introduces an unnecessary point of failure. He compares this complex, segmented design to plumbing. Indeed, he argues that the more connections you add, the more likely you are to have a failure point.
Unrepairable Damage Leaves GPU Bricked

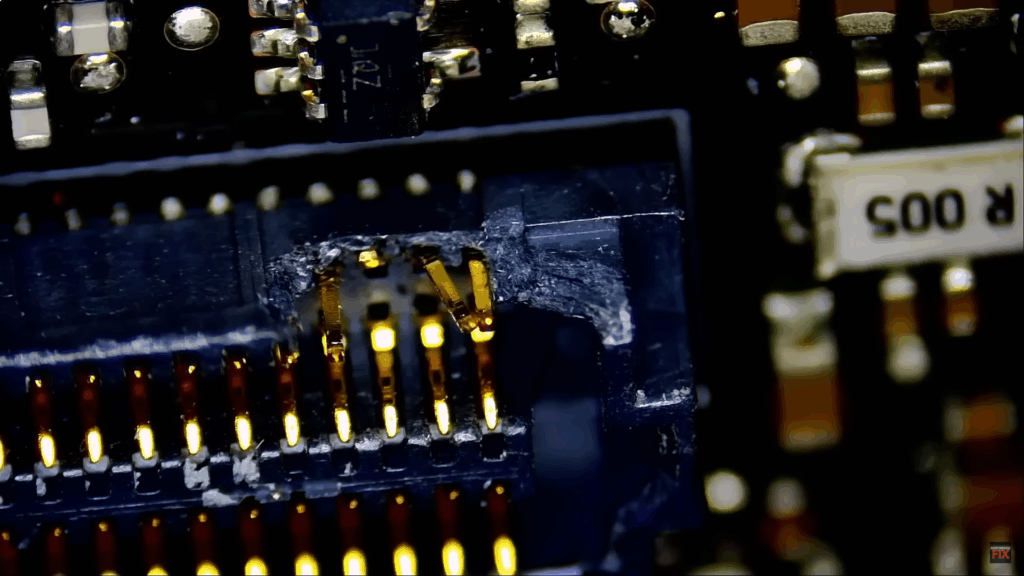

The specialist encountered a card that had stopped working. The owner had attempted to install a third party water cooling block. During this process, the user disconnected the PCIe interface to access the board. When they tried to connect it again, the damage occurred. A close examination under a microscope showed physical damage to the small internal connector. One pin was broken, and another was severely bent.
The ultimate problem is that the specialist could not fix the GPU. This is not because the damage is too complex. Rather, it is because replacement connectors are unavailable on the open market. This makes any damage to this specific part a permanent, unfixable issue. The only physical damage on the card was this tiny, proprietary connector. This essentially renders the entire high value GPU useless if it breaks.
Expert Warning to Consumers Across the Globe
The repair expert delivered a clear warning to consumers in Southeast Asia and across the world. He strongly advised against buying the RTX 5090 Founders Edition. This warning is especially important for users who plan to modify the card. It is also for anyone considering changing the cooler.
The complex disassembly and reassembly process carries a high risk of permanent damage. Consequently, once a user opens the card, it is highly likely they could damage it permanently. The specialist’s advice is simple. If the card is working correctly, users should “do not fix it” or open it at all.
The internal architecture of the RTX 5090 FE may be elegant, but its repairability is now under intense scrutiny. This design choice elevates the risk for every owner.
Is the RTX 5090 FE a design marvel or a repair nightmare? See why this specialist calls it one of the “worst ever.” RTX 5090 Founders Edition Tear-Down
This video provides a detailed tear down of the NVIDIA RTX 5090 Founders Edition, highlighting the complex disassembly process that led to the expert’s critique.
